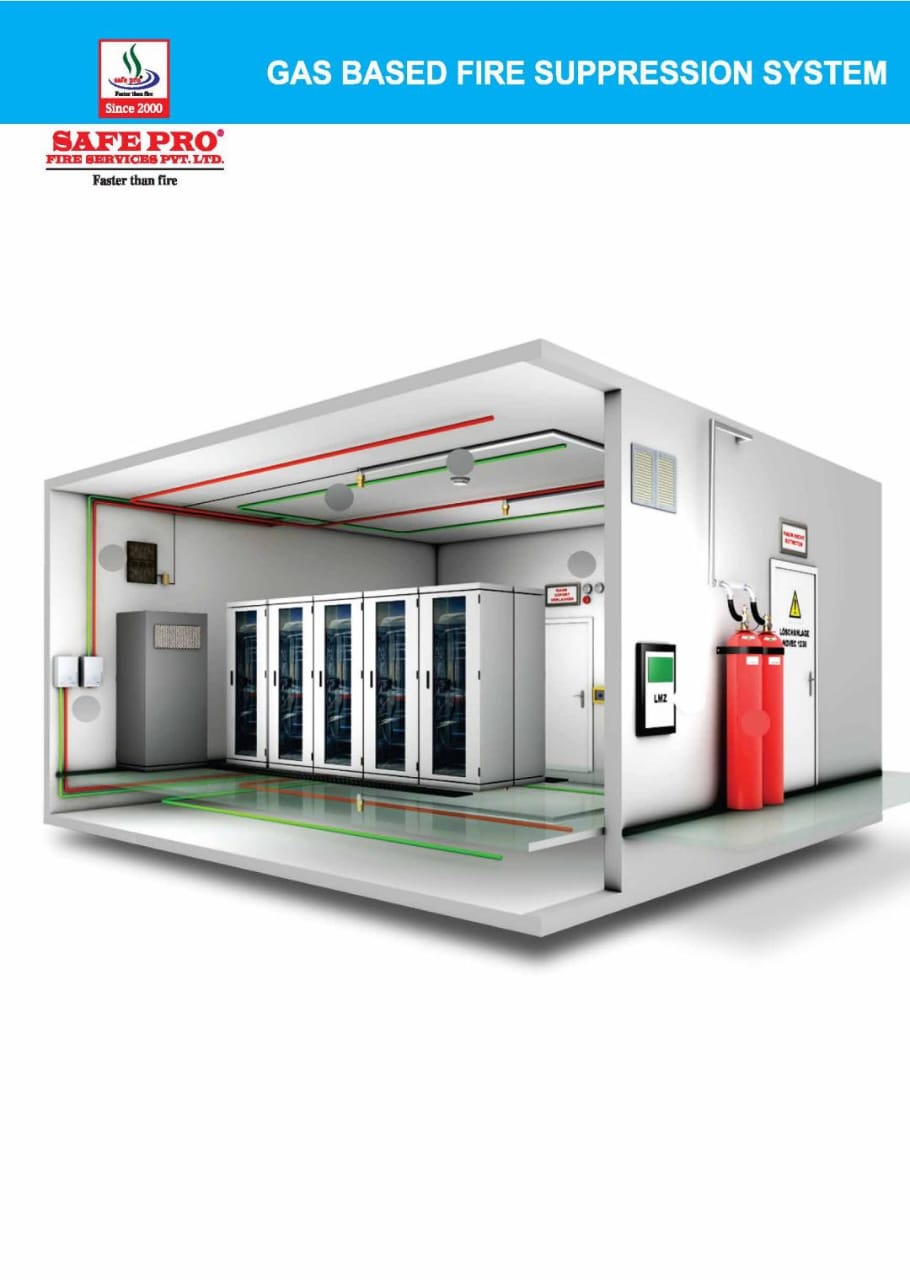

Gas Based Fire Extinguishing System
Original price was: ₹150,000.00.₹100,000.00Current price is: ₹100,000.00.
CO2 FLOODING SYSTEM (APPLICATION)
For LT panels,
Control rooms (Power Plant),
Powder coating and paint booths,
Transformers and sub- stations,
Rolling mills and turbines,
False floors and cable shafts, etc…
SAFEPRO Carbon Dioxide Fire Protection System offers a unique high pressure that minimizes the potential loss of lives and properties by acting in lowering the fire temperature and reducing oxygen level below reignition point. CO2 Cylinders are made of seamless steel and available in various capacities. Cylinders, combined with other system parts provide a comprehensive system suitable for total flooding and local application scenarios.

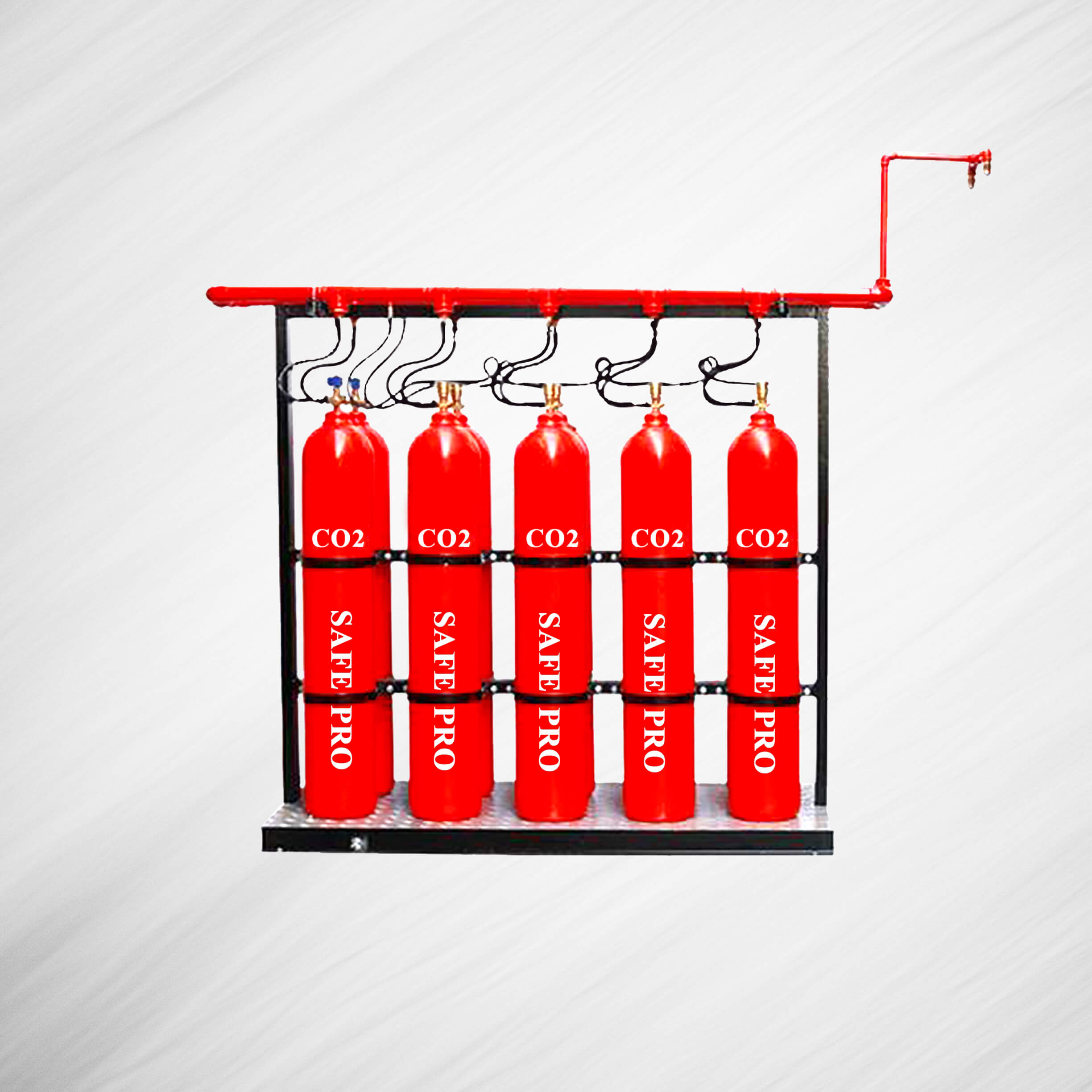

CO2 FLOODING SYSTEM
CO2 is strong a colorless gas with a density about 60% higher than that of dry air. Considered as best extinguishing gas. It suppress oxygen by eliminating heat, CO2 is most effective as afire extinguishing agent. NFPA -12 Rules and BIS 6382 Codes for design of such system are used as standard for CO2 Extinguishing or flooding system. CO2 gas generally stored in high pressure seamless steel cylinders is in liquid form with maximum filling ratio of 0.667 Kg/Ltr of cylinder volume.
In order to the fire hazard CO2 cylinders Quantity varies. On large hazards where several cylinders are required a manifold is used to connect each other by means of flexible hose and check valve. The cylinder’s master valve is electronically operated and the slave valve is pressure actuated. The master valve can be automatically or manually operated. Flow rate of CO2 is controlled.
Be the first to review “Gas Based Fire Extinguishing System”
Related products
Fire Extinguisher
| Certifications | ISI |
| Discharge Range | 6-mtr |
| Discharge Rate | 85% |
| Discharge Time | 15-25sec |
| Expelling Agent | Nitrogen Gas |
| Fire Rating | 55B |
| Fire Type | B C |
| Operating Temperature | -20 DegreeC to +55 DegreeC |
Fire Extinguisher
- Petrol Pumps
- Generator Rooms
- Oil & Petrochemical Factories
- Computer Centres
- Paint Booths
Fire Extinguisher
| Fire Extinguisher Type |
Dry Powder Type |
| Fire Class |
A Class, B Class, C Class |
| Capacity |
500 Gm |
| Size |
500 Gm |
| Usage/Application |
For Kitchen Use |
Uncategorized
| Certifications | ISI |
| Discharge Range | 6-mtr |
| Discharge Rate | 85% |
| Discharge Time | 15-25sec |
| Expelling Agent | Nitrogen Gas |
| Fire Rating | 4 A |
| Fire Type | A B C |
| Operating Temperature | -20 DegreeC to +55 DegreeC |
Fire Fighting
A fire blanket is a sheet of woven fire-resistant material designed to extinguish small fires. Fire blankets are usually made from woven fibreglass and work by smothering the fire and cutting off its oxygen supply. Fire blankets are stored in a wall-mounted case or pouch for quick access in a fire emergency.

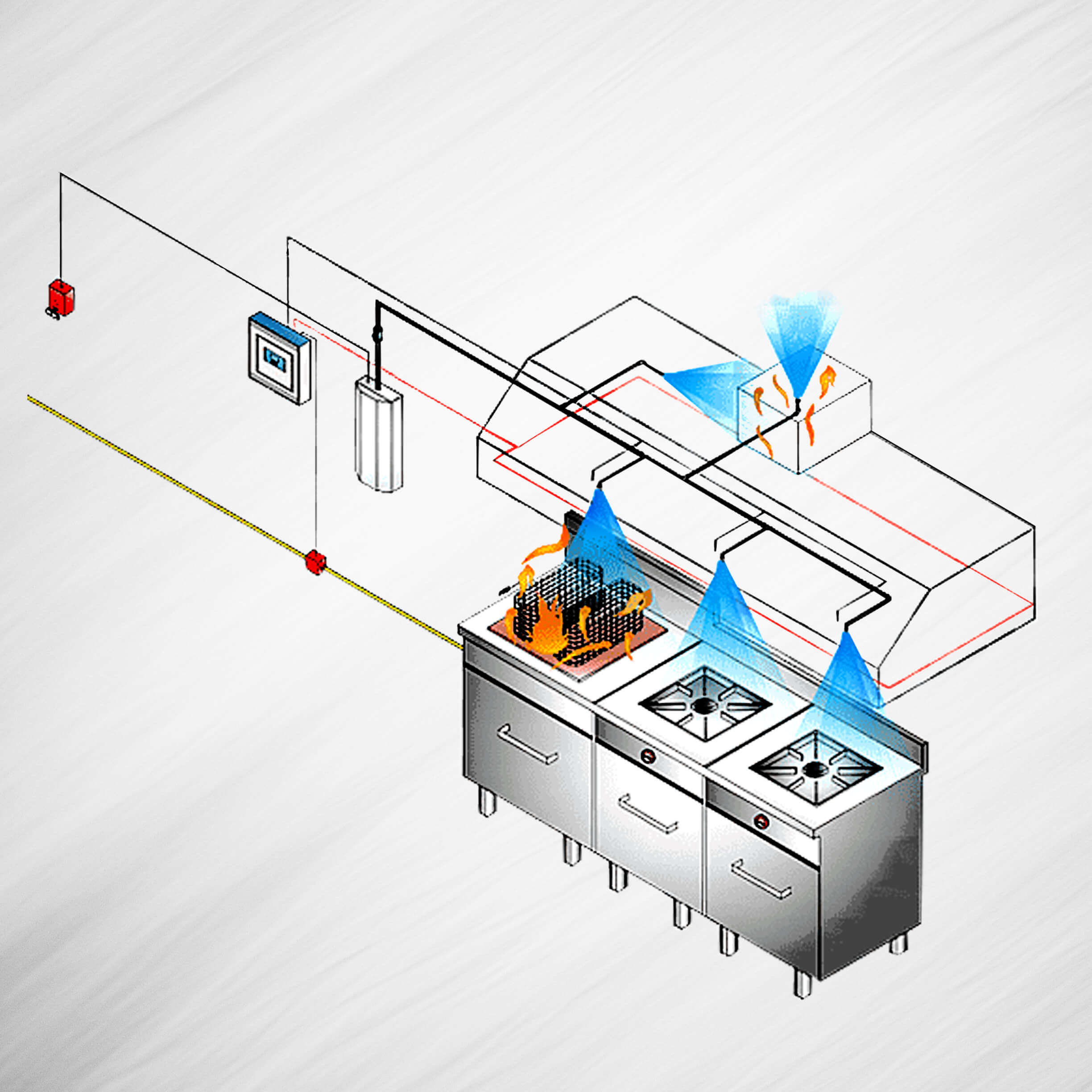

Autimatic Fire Fighting
| MODEL | SPECIFICATIONS | MODEL | SPECIFICATIONS |
|---|---|---|---|
| Extinguishing Agent | (Rotarex) Wet Chemical System | Capacity | 6kg - 21kg |
| Working Pressure* | 16 bar | Cylinder Thickness | 1.5 mm |
| Sensor Tube Burst Temperature | 175 deg C | Cylinder | SS |
| Operating Temperature5 Deg C to 65 Deg C | 5 Deg C to 65 Deg C | Cylinder Approvals* | CE |
Fire Fighting
Fire Extinguisher
Reviews
There are no reviews yet.
